2009 GL&V / Beloit DD4600 42" Double Disc Refiner
Have one to sell?
ConditionUsed
1 available

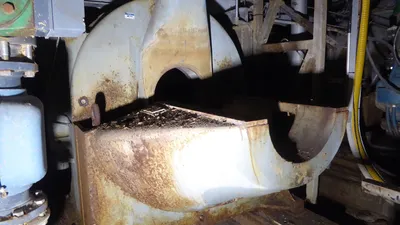

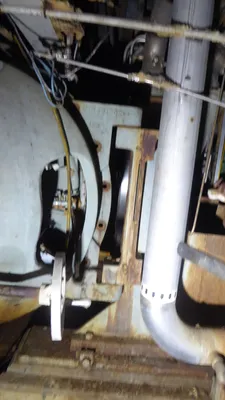

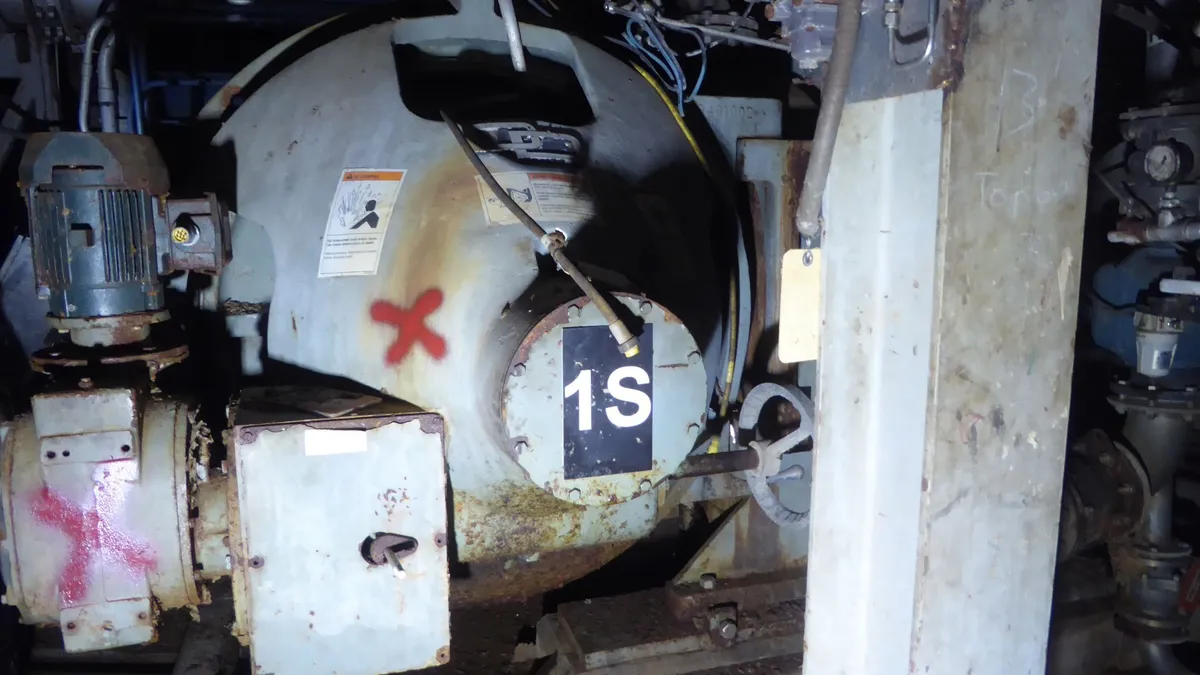

For sale is a high-performance GL&V / Beloit DD4600 42-Inch Double Disc Pulp Refiner, built in 2009 under Serial Number N01073-R09. Developed using the industry-proven Beloit design framework, this heavy-duty commercial refiner applies controlled mechanical shear and compression to optimize fiber-to-fiber bonding potential.
Decommissioned from an active paper mill facility during an upgrade cycle, this unit is engineered for low-consistency or high-consistency refining across hardwood, softwood, secondary recycled fiber, or tissue furnishes.
Technical Specifications
• Manufacturer: GL&V / Beloit Jones
• Model/Series: 42 DD 4600 Refiner

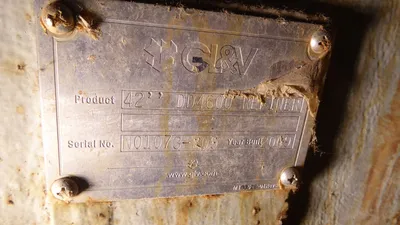

• Serial Number: N01073-R09
• Year of Manufacture: 2009
• Nominal Disc Size: 42 Inches
• Equipment Type: Horizontal-shaft, pressurized double-disc pulp refiner
• Max Operating Pressure: 690 kPa (100 psi)
• Assembly Rigging Weight: ~11,500 lbs (approx. 5,175 kg) base assembly weight. Essential reference for rigging tackle and flatbed transport allocation.
• Primary Application: Fiber fibrillation, bonding enhancement, and paper sheet formation control.
Features & Operational Benefits
• Robust Cast Enclosed Housing: Engineered to handle high continuous hydraulic pressures and corrosive process chemistry in harsh mill environments.

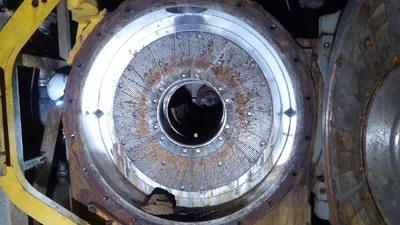

• Precision Spline/Rotor Compatibility: Accommodates standard segmented disk plates to eliminate uneven force distribution and reduce operating costs.
• Integrated Safety Safety Bounds: Built to support automatic interlock controls that trigger fast-open functions at crucial high/low operational boundary limits (<15 psi or >90/100 psi).
• Global Aftermarket Support: Highly accessible, standard footprint means effortless sourcing of replacement wear items, packing sleeves, and aftermarket plate segments.
Condition & Logistics
• Condition: Used. Removed from an operational stock preparation configuration in structurally sound, intact mechanical condition. Housing and shaft assembly remain intact. Buyer verification of internal plate styles is recommended.
• Shipping & Freight: Freight Pickup Only / Ex-Works. The buyer assumes full responsibility for all heavy industrial rigging, crane hiring, and logistics coordination.
For sale is a high-performance GL&V / Beloit DD4600 42-Inch Double Disc Pulp Refiner, built in 2009 under Serial Number N01073-R09. Developed using the industry-proven Beloit design framework, this heavy-duty commercial refiner applies controlled mechanical shear and compression to optimize fiber-to-fiber bonding potential.
Decommissioned from an active paper mill facility during an upgrade cycle, this unit is engineered for low-consistency or high-consistency refining across hardwood, softwood, secondary recycled fiber, or tissue furnishes.
Technical Specifications
• Manufacturer: GL&V / Beloit Jones
• Model/Series: 42 DD 4600 Refiner
• Serial Number: N01073-R09
• Year of Manufacture: 2009
• Nominal Disc Size: 42 Inches
• Equipment Type: Horizontal-shaft, pressurized double-disc pulp refiner
• Max Operating Pressure: 690 kPa (100 psi)
• Assembly Rigging Weight: ~11,500 lbs (approx. 5,175 kg) base assembly weight. Essential reference for rigging tackle and flatbed transport allocation.
• Primary Application: Fiber fibrillation, bonding enhancement, and paper sheet formation control.
Features & Operational Benefits
• Robust Cast Enclosed Housing: Engineered to handle high continuous hydraulic pressures and corrosive process chemistry in harsh mill environments.
• Precision Spline/Rotor Compatibility: Accommodates standard segmented disk plates to eliminate uneven force distribution and reduce operating costs.
• Integrated Safety Safety Bounds: Built to support automatic interlock controls that trigger fast-open functions at crucial high/low operational boundary limits (<15 psi or >90/100 psi).
• Global Aftermarket Support: Highly accessible, standard footprint means effortless sourcing of replacement wear items, packing sleeves, and aftermarket plate segments.
Condition & Logistics
• Condition: Used. Removed from an operational stock preparation configuration in structurally sound, intact mechanical condition. Housing and shaft assembly remain intact. Buyer verification of internal plate styles is recommended.
• Shipping & Freight: Freight Pickup Only / Ex-Works. The buyer assumes full responsibility for all heavy industrial rigging, crane hiring, and logistics coordination.
