2009 ANDRITZ TwinFlo III 42" Double Disc Refiner
Have one to sell?
ConditionUsed
1 available

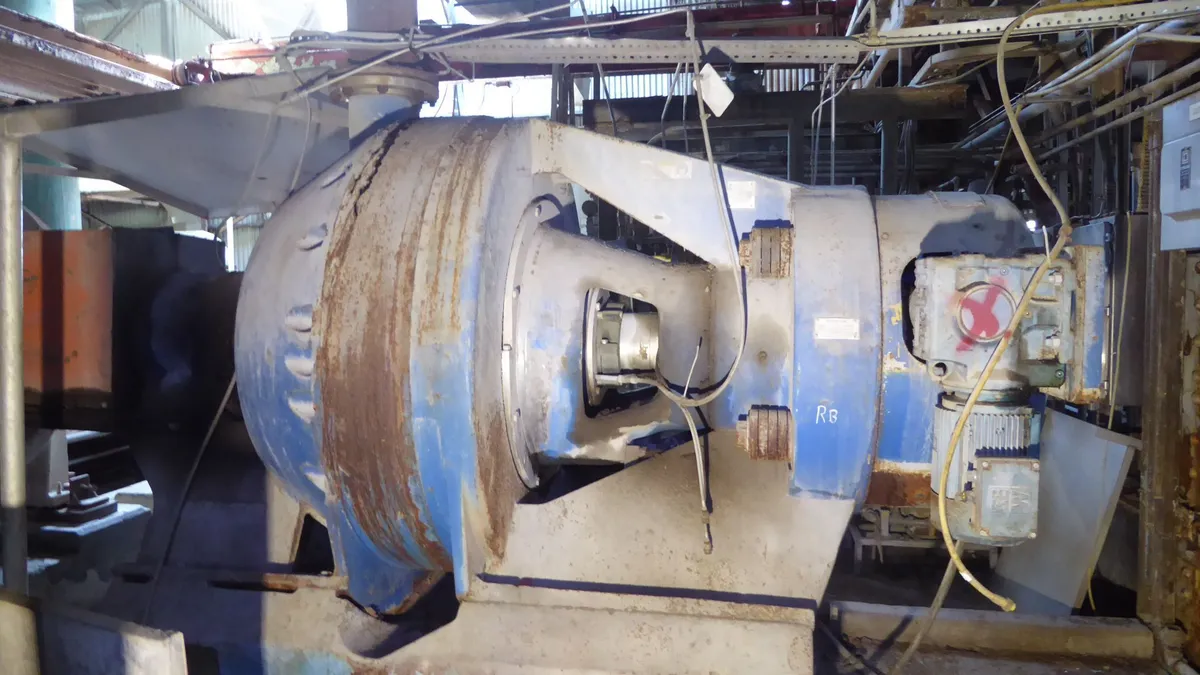

For sale is a commercial-grade ANDRITZ TwinFlo III 42-Inch Low-Consistency Double Disc Pulp Refiner, built in 2009 under Serial Number 2009-00029. The TwinFlo line is widely recognized as an industry benchmark for stock preparation. It utilizes two identical refining zones inside a symmetric, heavy-duty housing to deliver highly balanced fiber fibrillation, enhanced bonding potential, and sheet strength control.
Decommissioned from a professional paper mill's stock preparation department, this horizontal-shaft refiner is highly flexible and can process mechanical pulp, softwood/hardwood chemical pulps, secondary recycled fiber, or tissue furnishes depending on the installed plate pattern.
Technical Specifications
• Manufacturer: ANDRITZ (Muncy, PA, USA)

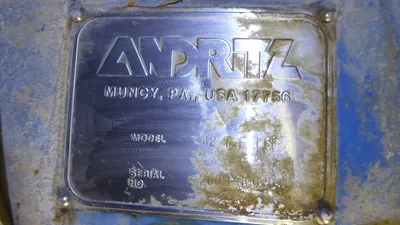

• Model/Series: TwinFlo III (Nameplate: 42-TF III / 42 T-F III)
• Serial Number: 2009-00029
• Year of Manufacture: 2009
• Nominal Disc Size: 42 Inches
• Equipment Type: Pressurized horizontal-shaft, low-consistency double-disc refiner
• Rotor/Shaft Technology: Advanced spline shaft floating technology for self-centering disc tracking and balanced energy transfer.
• Primary Application: Precision fiber development, freeness reduction, and sheet formation improvement.
Features & Operational Benefits
• Spline Shaft Technology: Features a free-floating rotor disc that automatically balances hydraulic forces between both refining faces, eliminating uneven axial thrust and maximizing plate life.
• Swing-Door Mechanical Access: Engineered with a convenient front-swinging door configuration, granting maintenance crews immediate, unobstructed access to the internal cavities for rapid plate segment replacement and minimal downtime.
• Sturdy Symmetrical Housing: Robust casting stands up to aggressive process chemicals and high continuous fluid flows common to high-volume mill stock prep plants.
• Broad Aftermarket Support: Due to the widespread adoption of the ANDRITZ 42-TF platform, a massive catalog of standard segmented plate profiles and wear parts is universally available from multiple global suppliers.
Condition & Logistics
• Condition: Used industrial surplus. Carefully pulled from an operational environment. Casing, horizontal main shaft assembly, and swing-door hinges are fully intact. Internal components are intact; buyer verification of current plate pattern is suggested.
• Shipping & Freight: Freight Pickup Only. The buyer is entirely responsible for hiring certified heavy machinery riggers, crane services, and managing specialized heavy flatbed transportation logistics.
For sale is a commercial-grade ANDRITZ TwinFlo III 42-Inch Low-Consistency Double Disc Pulp Refiner, built in 2009 under Serial Number 2009-00029. The TwinFlo line is widely recognized as an industry benchmark for stock preparation. It utilizes two identical refining zones inside a symmetric, heavy-duty housing to deliver highly balanced fiber fibrillation, enhanced bonding potential, and sheet strength control.
Decommissioned from a professional paper mill's stock preparation department, this horizontal-shaft refiner is highly flexible and can process mechanical pulp, softwood/hardwood chemical pulps, secondary recycled fiber, or tissue furnishes depending on the installed plate pattern.
Technical Specifications
• Manufacturer: ANDRITZ (Muncy, PA, USA)
• Model/Series: TwinFlo III (Nameplate: 42-TF III / 42 T-F III)
• Serial Number: 2009-00029
• Year of Manufacture: 2009
• Nominal Disc Size: 42 Inches
• Equipment Type: Pressurized horizontal-shaft, low-consistency double-disc refiner
• Rotor/Shaft Technology: Advanced spline shaft floating technology for self-centering disc tracking and balanced energy transfer.
• Primary Application: Precision fiber development, freeness reduction, and sheet formation improvement.
Features & Operational Benefits
• Spline Shaft Technology: Features a free-floating rotor disc that automatically balances hydraulic forces between both refining faces, eliminating uneven axial thrust and maximizing plate life.
• Swing-Door Mechanical Access: Engineered with a convenient front-swinging door configuration, granting maintenance crews immediate, unobstructed access to the internal cavities for rapid plate segment replacement and minimal downtime.
• Sturdy Symmetrical Housing: Robust casting stands up to aggressive process chemicals and high continuous fluid flows common to high-volume mill stock prep plants.
• Broad Aftermarket Support: Due to the widespread adoption of the ANDRITZ 42-TF platform, a massive catalog of standard segmented plate profiles and wear parts is universally available from multiple global suppliers.
Condition & Logistics
• Condition: Used industrial surplus. Carefully pulled from an operational environment. Casing, horizontal main shaft assembly, and swing-door hinges are fully intact. Internal components are intact; buyer verification of current plate pattern is suggested.
• Shipping & Freight: Freight Pickup Only. The buyer is entirely responsible for hiring certified heavy machinery riggers, crane services, and managing specialized heavy flatbed transportation logistics.
